National Multi Crop Ridge Planter

  • It is used for the singulated sowing of various crops such as Maize, Sunflower, Cotton, Soybean, and Groundnut on the top of the ridges.
  • The machine performs ridge making and seeding in a single pass.
  • Sowing on ridges is a water-saving method compared to sowing on flats, as only the furrows need to be irrigated, not the whole field.
  • It features a Strong and Robust frame.

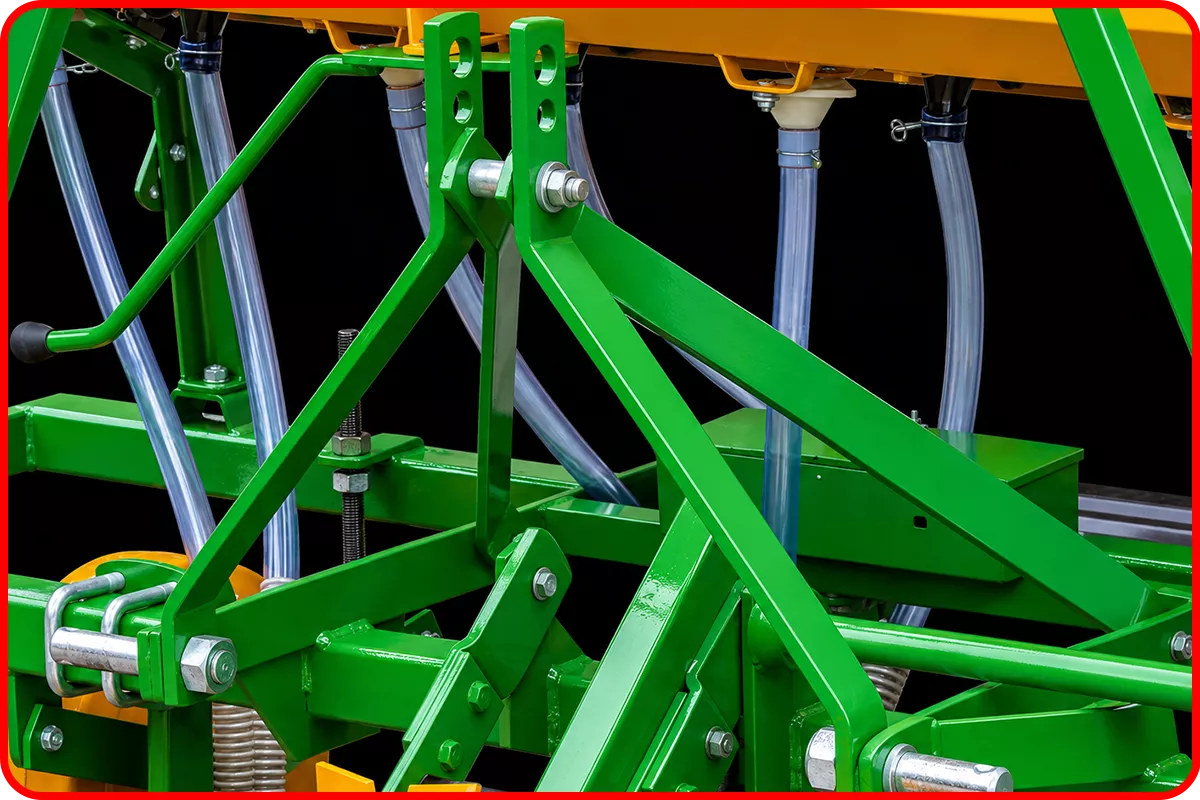

  • The planter is Tractor mounted with 3 Point Linkage.

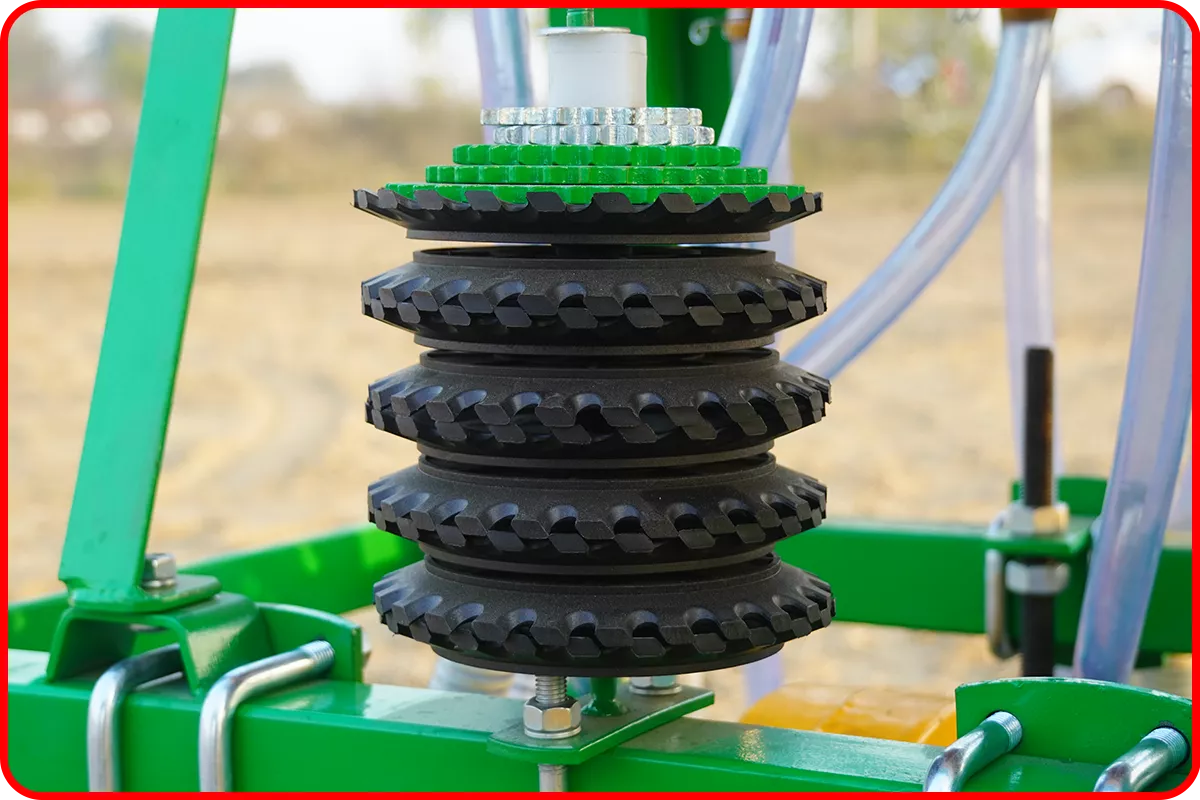

  • It employs a Rotating Disc with cells on its periphery for seed metering.
  • Row spacing is a maximum of 24" and is adjustable with 'U' Clamps.
  • It has Ground Wheel driven functionality, with the driving wheel located at the front in the center of the Planter.
  • The design includes superior quality steel Furrow Openers for long wear resistance life.
  • Seed saving is achieved through a Precise Seed Metering Mechanism.

Benefits

The NATIONAL MULTI CROP RIDGE PLANTER offers several key features and advantages for farmers:

  • Single Pass Operation: The ridge making and seeding processes are completed in a single pass, saving time and fuel.
  • Water Saving: Sowing on ridges allows you to irrigate only the furrows, not the whole field, resulting in water conservation compared to sowing on flats.
  • High Durability: The planter features heavy-duty construction using best quality raw material and includes superior quality furrow opener steel for long wear resistance life.
  • Precision Engineering: All components and parts are manufactured using the latest technology, such as CNC machines and Mig Welding, which ensures parts interchangeability, precise working, and enhanced product life.
  • Corrosion Resistance: Components are treated with cleaning, short blasting, an undercoat, and then painted with a PU top coat before assembly, ensuring a long, corrosion-free product life.

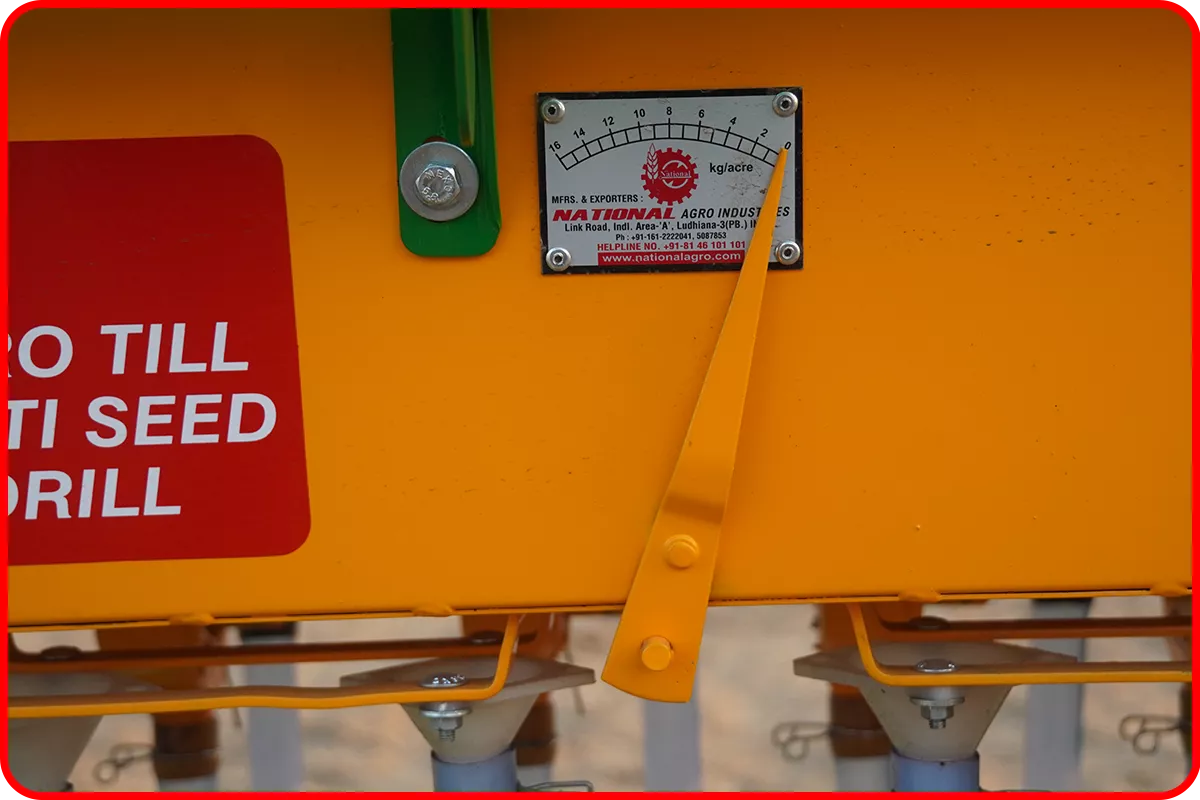

  • Easy Adjustments: The Ridges and Seeding Tines are fitted with 'U' Clamps for easy adjustments along with a strong grip. Seed and fertilizer rates are also very easy to adjust.
  • Higher Yields: The depth control mechanism allows for better seed placement, which contributes to higher yields.

Usage

  • Crop ApplicationIt is used for the singulated sowing of various Crops like Maize, Sunflower, Cotton, Soybean, Groundnut, etc., on the top of the Ridges.
  • Single Pass EfficiencyThe machine is designed so that the Ridge making and seeding are done in a single pass only.

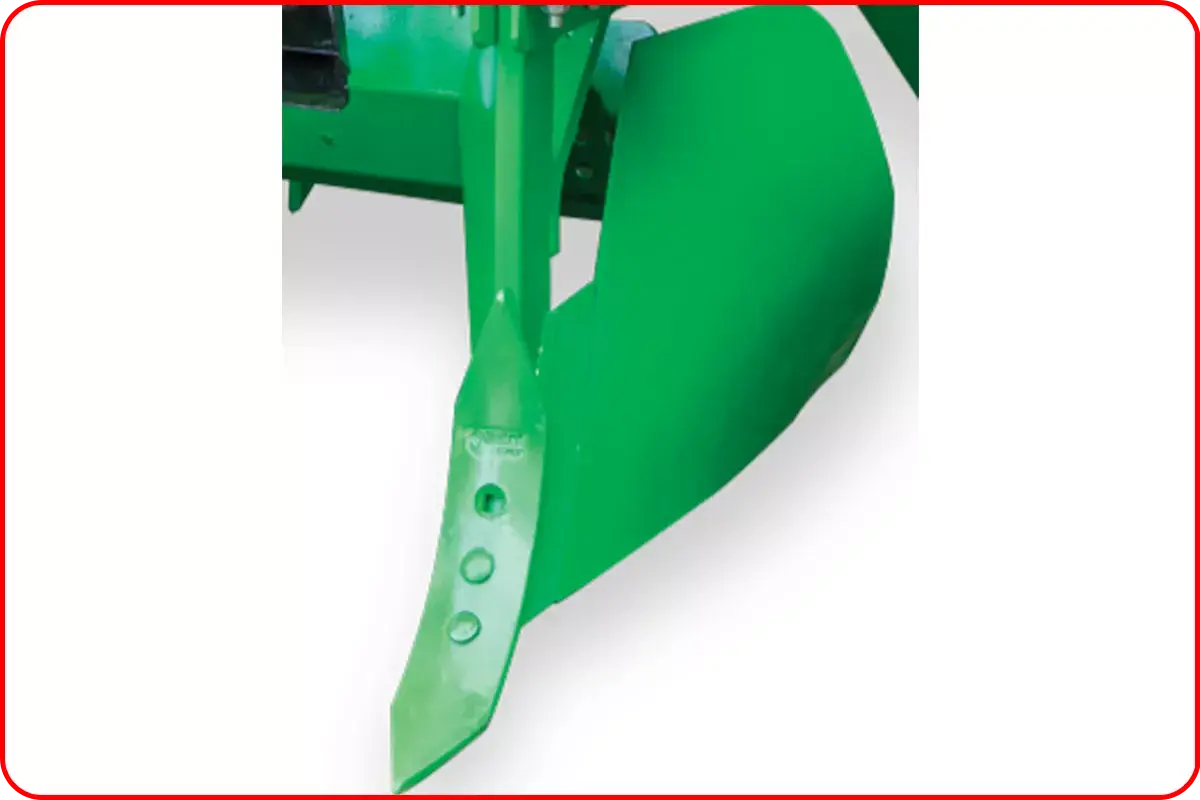

  • Sowing EnvironmentIt uses Shovels as Furrow Openers for sowing in tilled/prepared fields.

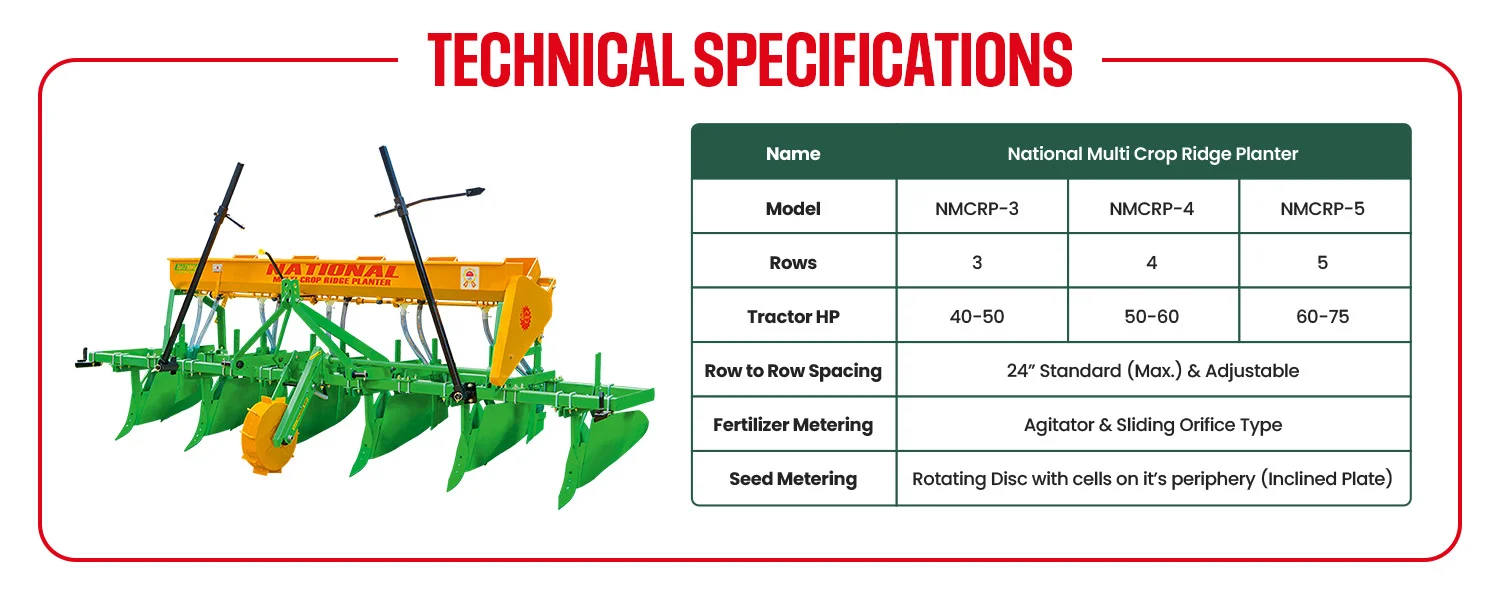

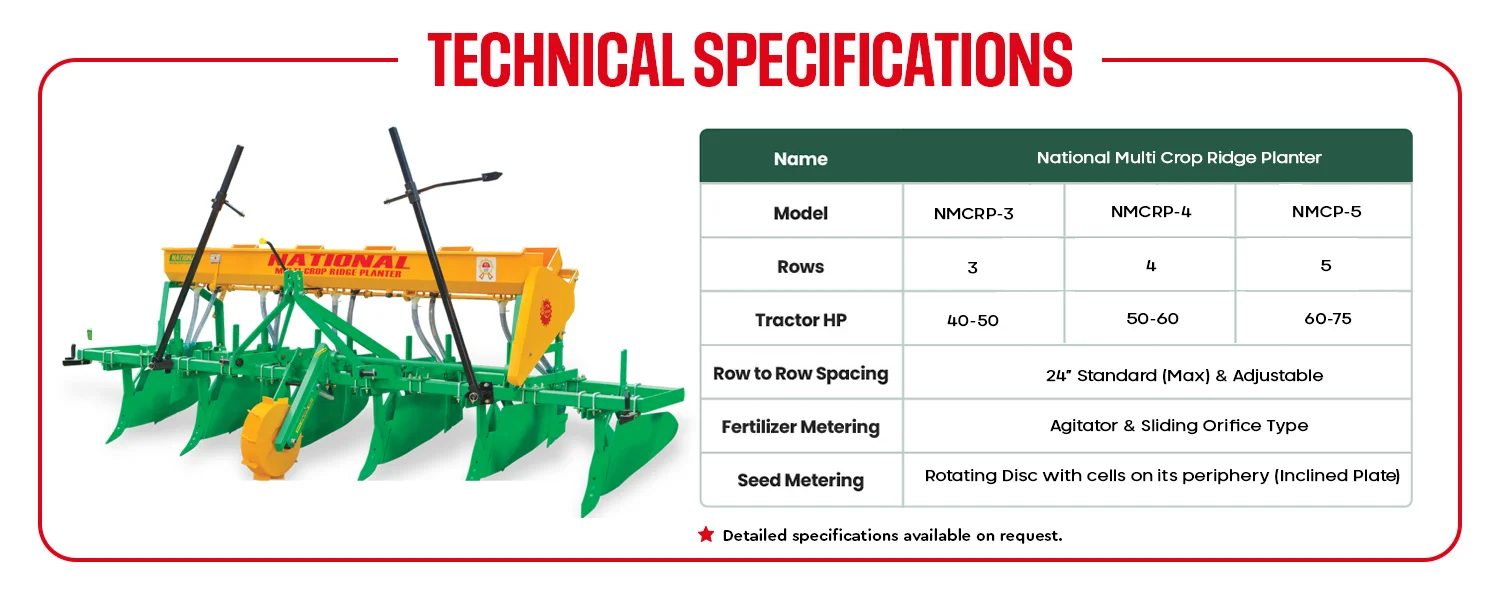

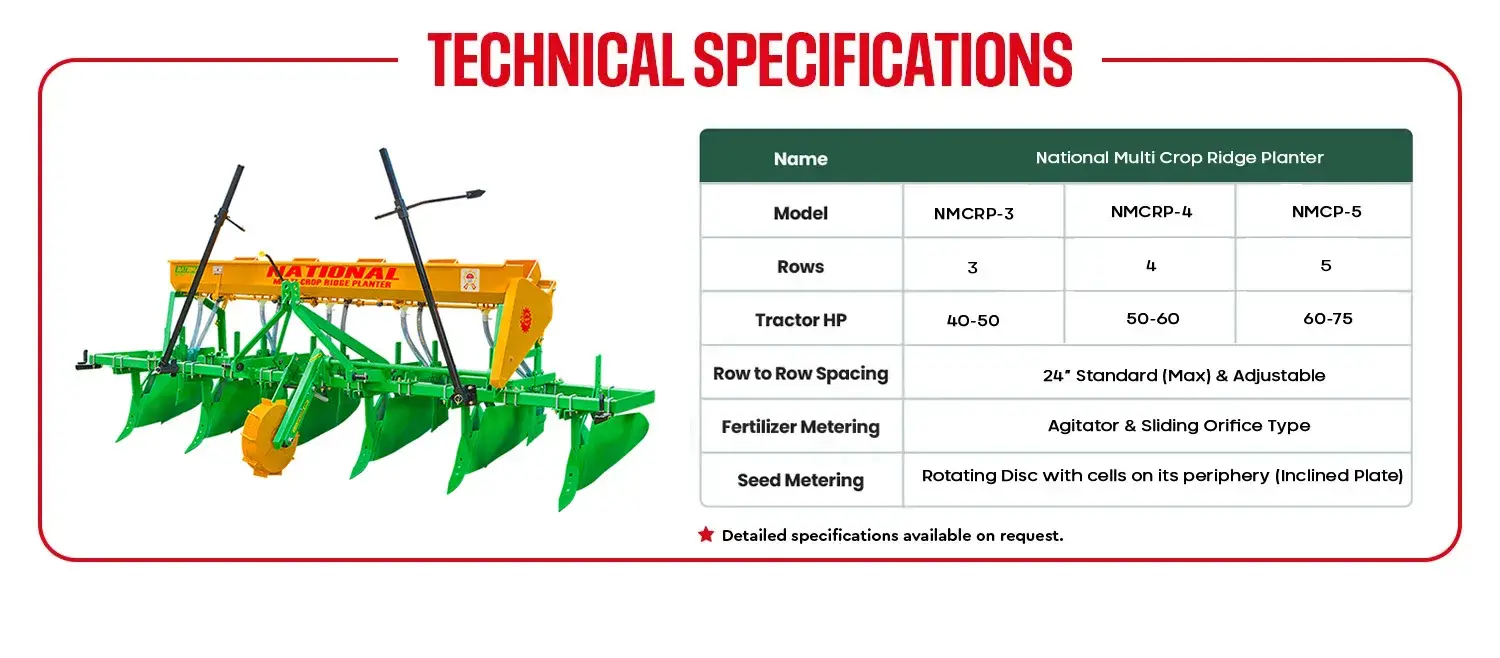

  • Tractor PowerThe planter requires a range of tractor horsepower depending on the model45-50 HP for the NMCRP3-HD, 50-60 HP for the NMCRP4-HD, and 70-75 HP for the NMCRP5-HD.
  • Drive SystemThe machine is Ground Wheel driven, with the driving wheel located at the front in the center of the Planter.
  • AdjustabilityThe Sowing Depth is Adjustable , and the Row Space is a maximum of 24" and is also adjustable with 'U' Clamps.

Short or long element

Lid made of technopolymer

Bronze selector that sticks perfectly to the disc

1.2 mm thick stainless steel seed disc, resistant and easy to replace

Delrin seal guiding and large backing disc

Row disconnect device

Sowing depth regulation through a pupo with graduated index

Rocker independent depth wheels

Seed press wheels, variable in size and position

Parallelogram of element mounted with self-lubricating bushing

Progressive double spring weight adjustment

3 point hitch

Fertilizer

Stainless steel microgranulator

Quick seed discharge

Element manual lifting device

2x230 L fertilizer

2x290 L fertilizer

1x725 L fertilizer

1x960 L fertilizer

Double disc fertilizer boot "HDS"

Fertilizer loading auger

Air with fan outer rows per fertilizer

Pneumatic furrow fertilization

Blower air deflection (Bee kit)

Microgranulator 25 L

Double microgranulator (12 L)

Double microgranulator (25 L)

Front disc for opening furrows

Fluted front disc opens grooves

Star rotary debris crusher

Vomer fast regulation

Wavy disc d. 465

Ancore pairs break groove

1 "" V "wheels

2 ”“ V ”wheels

Intermediate seed cover

Farmflex wheel + seed cover

Narrow depth wheels

Spoke depth wheels

Pair of wheels 6.50-80 / 15

20.0 ”front wheel pairs

Couple scrapes mud for wheels

Pietra protection plate for front wheels

Seed compactor intermediate wheel

Additional spring element

Hydraulic transmission

60 L hopper

Lights

Electronic hectare account

Control-C

Supercontrol 12 rows

Extra control 18 rows

Golden

Smart-Drive

Technical Data

Technical Data
