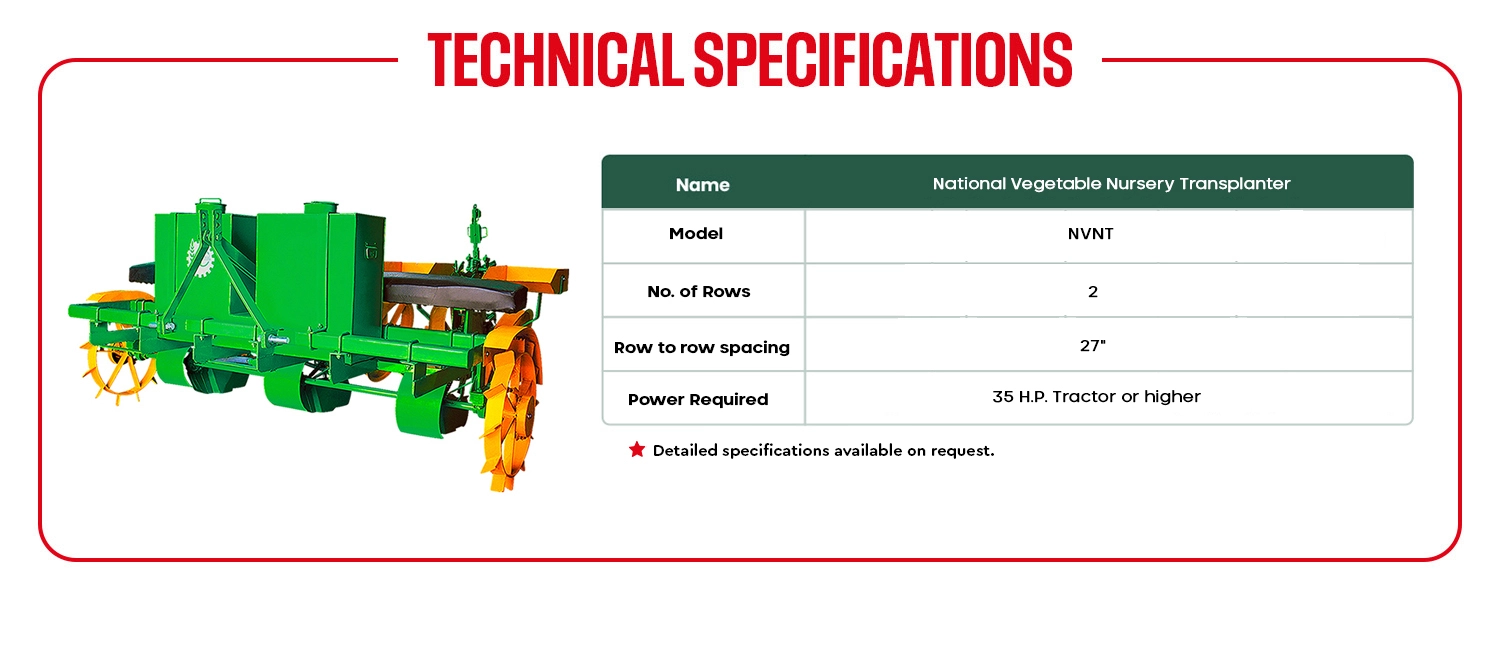

National Vegetable Nursery Transplanter

It's designed to be Tractor mounted with 3 Point Linkage and requires a 35-40 HP tractor for operation.
The transplanter is used for transplanting Vegetable Nurseries (various crops) in the fields without effort.
It features Heavy Duty construction using the Best Quality Raw material to ensure a strong and robust frame.
The crucial Plant Handling is done via Mechanical Spring Loaded Fingers.
It is Ground Wheel driven with a driving wheel on both sides of the transplanter.
Features like superior quality Furrow Openers steel and a Water Sprinkling Tank for keeping plants moist during transplanting contribute to its long wear resistance life.
Plant Spacing and Sowing Depth are both Adjustable.

Features
Usage

Features

Efficiency and Ease of Use

Effortless Transplanting: It is specifically used for transplanting Vegetable Nurseries in the fields without effort.
Easy Adjustments: Seeding Units are fitted with U Clamps for easy adjustments along with a strong grip.
Adjustable Specifications: Both Plant Spacing (adjustable with Sprockets) and Sowing Depth are adjustable to suit different crop requirements.

Durability and Quality Construction

Heavy Duty Build: The transplanter features Heavy Duty construction using the Best Quality Raw material.
Advanced Manufacturing: All components and parts are manufactured on latest technology like CNC machines and Mig Welding.
Interchangeability and Reliability: The use of advanced technology ensures parts interchangeability, enhanced product life, and precise and reliable working.
Long-lasting Components: Better quality and Durable components are used, such as Chains, Splined Sprockets, Spring Loaded Idler, and Fasteners.

Corrosion Resistance and Plant Care

Superior Corrosion Protection: Components are treated with cleaning, short blasting, an undercoat, and then painted with a PU top coat before assembling.
Extended Product Life: This finishing process ensures the users can have a long corrosion free product life and better surface finish.
Superior Wear Resistance: The use of Superior Quality Furrow Openers steel gives long wear resistance.
Plant Survival: A Water Sprinkling Tank is provided for keeping plants moist while transplanting, which also contributes to long wear resistance life.

Usage

Primary Function: The machine's core usage is for transplanting Vegetable Nurseries efficiently in the fields.
Power Requirement: It is designed to be used with a tractor requiring 35-40 HP.
Mounting and Hitching: The transplanter is a Tractor mounted type and connects using a 3 Point Linkage.
Operation Drive: The mechanism is Ground Wheel driven, with a driving wheel situated on both sides of the transplanter.
Planting Mechanism: (a) Row Configuration: It operates on 2 Rows.
(b) Plant Handling: Plants are handled mechanically using Spring Loaded Fingers.
(c) Furrow Opening: The implement uses Superior Quality Furrow Openers steel.
Field Adjustments: The operator can easily customize:
(a) Row Space: The fixed Row Space is 28".
(b) Plant Spacing: This is Adjustable with Sprockets.
(c) Sowing Depth: The Sowing Depth is also Adjustable.

Technical Data
